AutoPlay1

The entry-level all-in-one automation system with advanced functional features offers multi-channel broadcast with capability to control a built-in video server, broadcast graphics subsystem and a wide range of studio equipment.

Software modules: CaptureAir

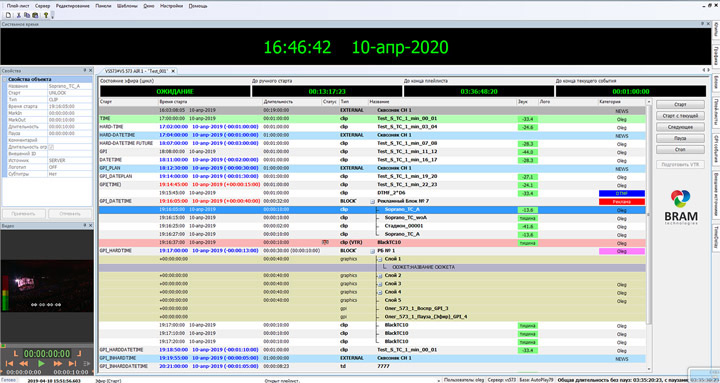

Система для автоматизации телевещания AutoPlay 1 на экране монитора

AutoPlay1

Functions

  • Multi-channel broadcasting
  • Automated execution of two-level hierarchic on-air playlist
    • Clips and blocks playback from the video server
    • Frame accurate VTRs playback
    • Control of various types of built-in or external switchers
    • Logos and graphics overlay
  • Automated insertion of the advertising and information blocks into a retransmission signal on time or by an external GPI/DTMF control signal
  • Automated media ingest on the schedule
  • Media ingest with RS422 deck’s control or manually
  • Broadcast graphics linked to the air’s playlist events or controled independently
  • Computer graphics (CG) playout on-line or in graphic playlist mode
  • Automated dynamic graphics playout (clock, temperature…)
  • As run logging

Features

  • On-air control of video server and built-in switcher
  • On-air control of VCRs and external switchers (Leitch/Harris, Profitt, Les, Kramer, TeleView)
  • Two channels of graphics for all playlist events
  • Standby clip technology
  • Local and network operation of on-air, ingest and graphics composing modules
  • Local and network operation of on-air playlists ads blocks, recording sheets and production modules
  • Support of various ingest types in one recording sheet
  • Visual configuration of the entire system with a graphical representation of the components
  • Graphics templates can use live video, video files, images, text, key-frame animation
  • Advanced playout features:
    • Ability to manually disconnect control station leaving video server to continue playback
    • Ability to continue playback from video servers even if the control module is disconnected due to the network failure
    • Recovery of on-air control at any network workplace
    • Edit of all events settings, including those on-air
  • Advanced playlists features:
    • Editing of on-air playlists
    • Loading of the next playlist without stopping the current one
    • Playlist looping mode
  • Advanced GPI / DTMF control signals operations:
    • Programming of “special” actions in playlist on the control signals
    • Setting up fixed delay for the actions on control signals
    • Ignoring of the control signals that does not get to the set time intervals
  • Open format of playlists and reports for integration with media planning systems
  • Creation of complete or partial copies of on-air playlist on videotape
  • Ability to share between departments the processes of media production for playout

Specifications

DATA BASE:
MS SQL Server

GRAPHICS:
Import
 AVI 32bit, TGA 32 bit, TPJ
Storage TPJ

VIDEO:
Import
AVI, MOV, MXF, DV, DIF, M2V, MTS, MP4, M2P, M2TS, M2T, MPG, WAV
Storage AVI, MOV, MXF, MP4
Export AVI, MOV, MXF, MP4
Project export as XMLAdobe Premiere, Apple Final Cut Pro, GV Edius

SUBTITLES:
Import / Export
 ASB, STL, XIF, SRT

SYSTEMS:

Videoservers Azimuth

Formats
SD 720х576, 50i/25p
HD 1920х1080, 50i/25p
UHD 3840х2160, 25p

Video 3G/HD/SD-SDI

Audio SDI Embedded, AES Unbalanced

IP SMPTE ST2110, SMPTE ST2022

IP multicast: mpeg4 h.264/ mpeg2 h.263

Cross conversion HD/SD

IP preview

Files AVI, MOV, MXF, MP4

Videotape Recorder RS-422A

Graphics server Azimuth, Carrot, Miranda, VizRT

Subtitles generator Azimuth

Formats SD: ETS 300 706; HD: OP-47

NEW

  • Rundown Blocks
  • New Printing for NRCS Software Module NewsPlan
  • Sending CG Playlists to TitleStation Mix by MOS
  • Dynamic Caption Templates
  • SCTE-104 Playout Support
  • VBI in TimeDelay and pass-through
  • Clip Quick-cut in on-air Rundown
  • Parallel Video and Sound Processing when Importing Media Files
  • Customizable Condition Lists in Search Filters
