Studio X

StudioX is a multichannel system created for video, audio signals ingest, playout and monitoring purposes.

Studio X is one of the advanced products designed for demanding broadcast applications. It is particularly useful for multicamera ingest productions. Content such as TV shows and concert coverage requires highly interactive software, and the ability to quickly process large amounts of content.

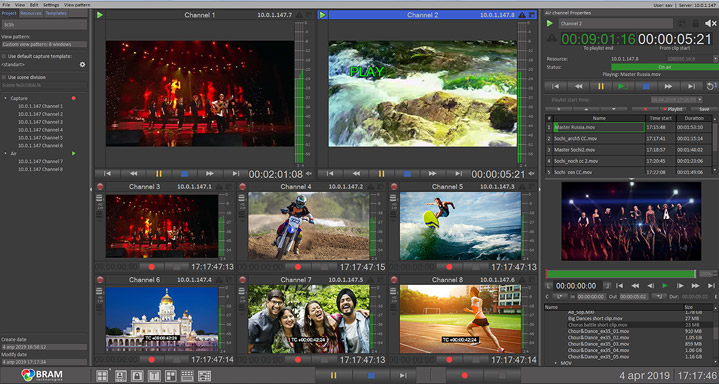

Screen of Studio X new

Studio X provides several functions, and can manage an unlimited number of channels and associated equipment. It also allows ‘on the fly’ editing and the convenient preparation of files for multicamera montages. The results are shorter production cycles and enriched content.

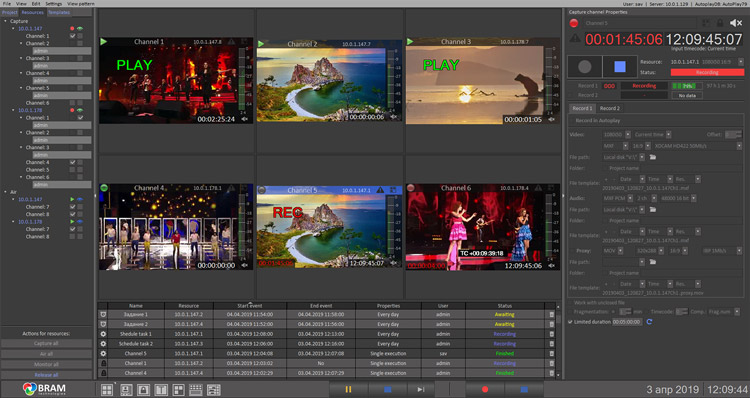

Screen of Studio X new 2

Features

  • Multifeed Ingest
  • Multiple Playback
  • Content Control, Edit and Playback
  • Edit-while-Ingest
  • Time-delay Recording
  • An unlimited number of channels
  • Playlist Editor to assemble the highlights of recording
  • Proxy Generation
  • Template Customisation
  • User-Specific Permissions and Roles
  • Playout Control
  • Up/Down Conversion
  • File and Folder Naming Automation
  • Multilanguage Support

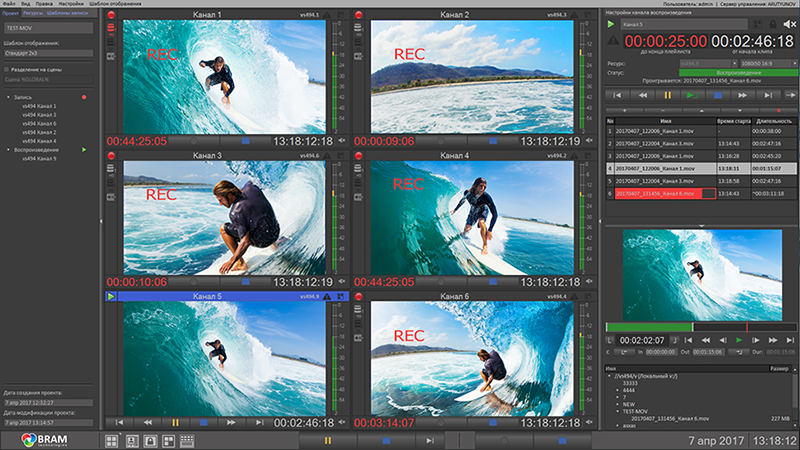

Studio X screen

Specifications

Video Standards Supported:

SD/HD/UHD/ IP ST-2110, 50i/25p/25psf/50p

Codecs Supported:

Apple ProRes, AVID DNxHD, Sony XDCAM HD422/EX/IMX, Panasonic AVC-Intra, DV/ DVCAM/ DVCPRO/ DVCPRO50/ DVCPRO100, MPEG2 I-frame, MPEG2 IBP etc

File Wrapper Support:

MOV, MFX, AVI, MP4 etc

Number of Audio Channels:

up to 16 channels 16/24/32-bit 48kHz

Additional tool:

Jog/Shuttle Remote Control Unit

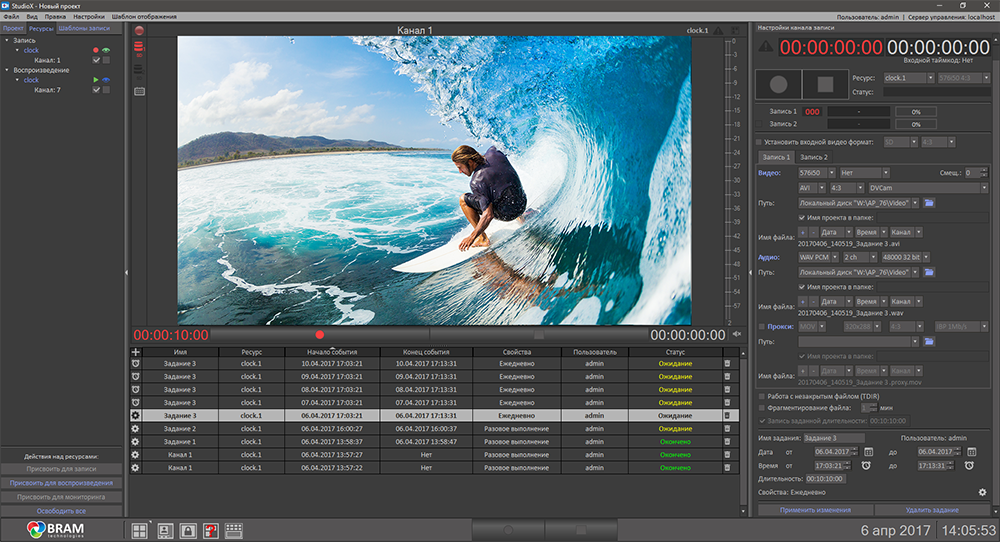

Studio X screen 2

Application

  • Studio and outside broadcast coverage of entertainment and sport events
  • Concerts, stage, talk and game shows, reality TV
  • Episodic TV production, TV ad creation etc.
  • Any event that requires substantial editing and post production of large volumes of content
  • Live events and video signal monitoring
